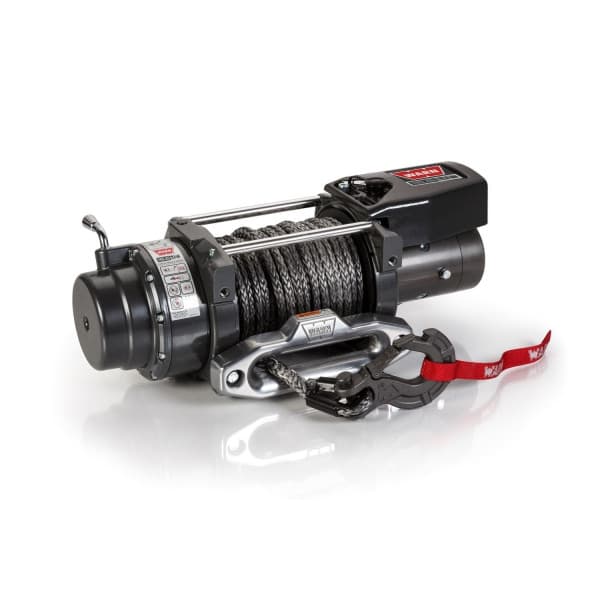

16.5TI-S - 16,500 lbs Winch With Synthetic Rope, 12V

16.5TI-S - The Ultimate 16,500 lbs Winch with Synthetic Rope

The 16.5TI-S Winch is engineered to deliver exceptional pulling power for extreme off-road conditions. With a robust 16,500 lbs (7484 kg) capacity and high-performance synthetic rope, this winch is designed to handle the most demanding recovery tasks. Whether you're navigating challenging terrains or recovering heavy loads, the 16.5TI-S provides the reliability and strength you need.

High-Performance Synthetic Rope

The 16.5TI-S Winch comes equipped with a high-strength synthetic rope that offers numerous advantages over traditional steel cables. Synthetic rope is lighter, safer, and easier to handle, making it the preferred choice for serious off-roaders. It also reduces the risk of injury during winching operations, as it doesn’t store kinetic energy like steel cables.

Powerful 12V Motor

Powered by a 12V motor, the 16.5TI-S Winch delivers consistent and reliable performance. The motor is built to withstand extreme conditions, ensuring that you have the pulling power you need, whenever you need it. Whether you're dealing with mud, snow, or rocky terrains, this winch is designed to perform under pressure.

Durable Construction for Extreme Conditions

Constructed with high-quality materials, the 16.5TI-S Winch is built to last. It features a corrosion-resistant finish, protecting it from harsh environmental elements. The winch is also designed with thermal protection to prevent overheating during prolonged use, ensuring durability and longevity.

Technical Specifications

• Capacity: 16,500 lbs (7484 kg)
• Rope Material: Synthetic Rope
• Motor: 12V
• Warranty: 7 years on the electrical parts
• Finish: Corrosion-resistant coating
• Dimensions: Suitable for heavy-duty off-road vehicles

Winch Dimensions and Mounting Bolt Pattern

• Winch Dimensions:
  • Length: 24.2 inches (615 mm)
  • Depth: 8.5 inches (216 mm)
  • Height: 9.7 inches (247 mm)
• Mounting Bolt Pattern:
  • Length: 10.0 inches (25.4 cm)
  • Width: 4.5 inches (11.43 cm)

12V DC Performance Specifications

• Line Pull and Performance:
  1. 0 lbs (0 kg):
     • Line Speed: 23.6 ft/min (7.20 m/min)
     • Motor Current: 68 amps
     • Pull by Layer: 1/16,500 lbs (7484 kg)
  2. 2000 lbs (907 kg):
     • Line Speed: 12.07 ft/min (3.68 m/min)
     • Motor Current: 138 amps
     • Pull by Layer: 2/15,279 lbs (6930 kg)
  3. 4000 lbs (1814 kg):
     • Line Speed: 9.22 ft/min (2.81 m/min)
     • Motor Current: 189 amps
     • Pull by Layer: 3/12,672 lbs (5748 kg)
  4. 6000 lbs (2721 kg):
     • Line Speed: 7.37 ft/min (2.25 m/min)
     • Motor Current: 240 amps
     • Pull by Layer: 4/10,824 lbs (4910 kg)
  5. 8000 lbs (3628 kg):
     • Line Speed: 6.08 ft/min (1.85 m/min)
     • Motor Current: 291 amps
  6. 10,000 lbs (4536 kg):
     • Line Speed: 5.12 ft/min (1.56 m/min)
     • Motor Current: 342 amps
  7. 12,000 lbs (5443 kg):
     • Line Speed: 4.40 ft/min (1.34 m/min)
     • Motor Current: 393 amps
  8. 14,000 lbs (6350 kg):
     • Line Speed: 3.86 ft/min (1.18 m/min)
     • Motor Current: 444 amps
  9. 16,000 lbs (7257 kg):
     • Line Speed: 3.38 ft/min (1.03 m/min)
     • Motor Current: 494 amps
  10. 16,500 lbs (7484 kg):
      • Line Speed: 3.24 ft/min (0.99 m/min)
      • Motor Current: 507 amps

Perfect for Extreme Off-Roading in Saudi Arabia

The 16.5TI-S Winch with Synthetic Rope is a top choice for off-road enthusiasts in Saudi Arabia. The country's challenging terrains require equipment that can withstand extreme conditions, and this winch delivers. With its robust construction, powerful motor, and high-strength synthetic rope, the 16.5TI-S ensures that you’re prepared for any recovery situation, making it an essential tool for desert adventurers.
