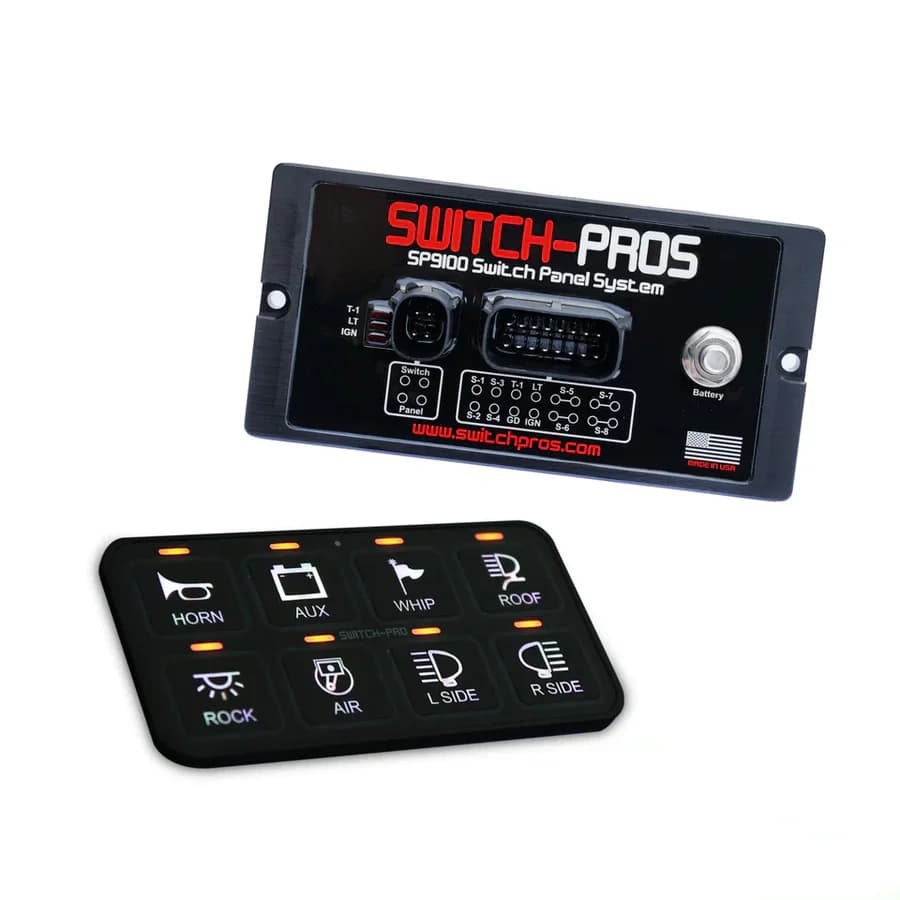

Switch Pros 8-Switch panel

What’s Included?

Switch Panel and Power Module

RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain  (United States Design Patent No. US D922,969 S)

11’ of Communication Cable between Switch Panel and Power Module

Power Cable with 125A inline fuse

125 User Selectable Legends included (Horizontal orientation)

Installation brackets and hardware

16-pin color coded output harness

Detailed installation Guide

Features

• RGB Backlighting

• Built-in Bluetooth module for use with free Switch-Pros AppProgram and operate your panel from any device with access to the iOs or Google Play Store

• Battery Voltage Readout on App screen

• Orange LED switch indicators

• LED Input Status Indicators for easy troubleshooting on power module

Specifications

125amp capacity with 8 outputs

• 8 Outputs: 4 rated @ 35A, 4 rated @ 20A

  • Adjustable Output Overcurrent Values

Switch Panel enclosure measures 4” L x 2” W x .375” H

Power Module Measures 6”L x 3”W x .5”H (excluding connectors)

Power Module Under Hood rating 125°C to -40°C

Switch Panel and Power Module Waterproof rating of IP67

Programming & Other Features

• Preset Dimming function WITH MEMORY (100% to 10% brightness)

• Master Mode, with ability to turn up to 7 other switches On AND Off with one touch

On/Off or Momentary

• Ignition or Battery Input

Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation

• Automatic Power-Up upon vehicle start up

• Time Delay off

• No bulky relay box

• Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)

• Low Voltage Disconnect

• Sleep Mode for minimal power consumption

• Daisy Chain up to 3 Switch Panels to One Power Module
