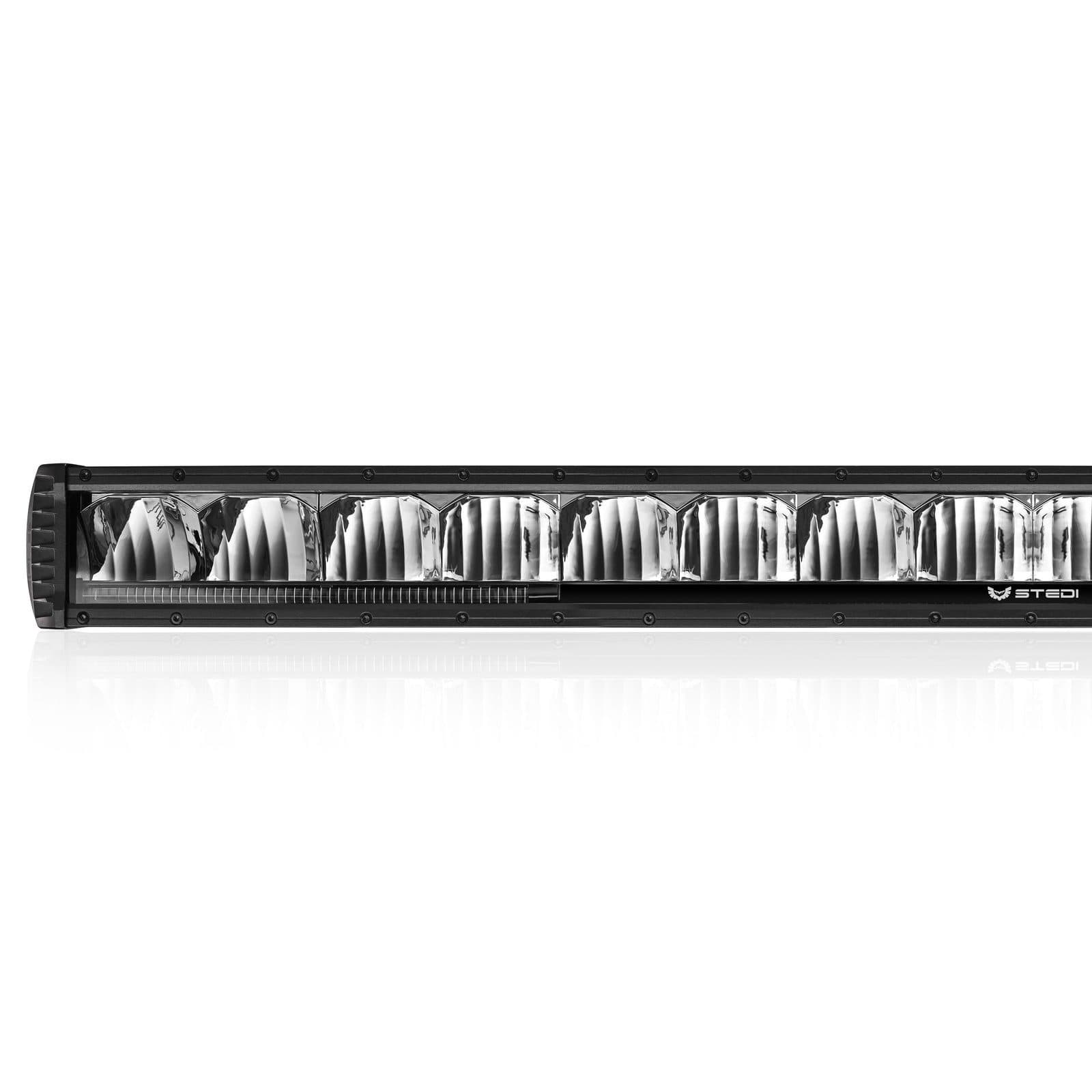

Curved 40.5 Inch ST2K Super Drive 16 LED Light Bar

OVERVIEW.
Hit the ‘on’ button and our ST2K-16L 40.5” Super- Drive LED light bar’s motor-sports pedigree instantly becomes evident. Compared to traditional optical systems, our innovative Super-Drive reflectors system delivers unmatched light intensity at the mid to long-range.

PERFORMANCE.
The ST2K has been designed around the intention to provide a powerful flood beam with a suficient spot. The purpose of this style of beam is to pair up with a combo or spot beam and where the flood beam of the others tend to narrow off, the ST2K picks up and takes it out even further lighting up the shoulders of the road.

BEAM CHARACTERISTICS.
The unconventional use of 16 x 15W rearward facing high powered LEDs allows us to achieves new levels of beam intensity & control that simply isn’t possible with traditional reflector designs. The beam characteristics are designed to start working past the point where your high beam ends. The mid to long range end of the beam opens to provide very effective spread illumination.

LUX GRAPH

DIMENSIONS

ADVANTAGES OF A LATERAL SPOT BEAM

• Excellent well rounded mid to long-range illumination
• Significantly minimizes adverse reflection from road signs
• Eliminates light wasted on illuminating tree tops (won’t disturb sleeping koalas)
• An excellent alternative to HID, without the associated downsides
• The beam is 90m wide at approx 250m

KEY FEATURES

• LED Parking / Position Light Function
• Breather allows pressure equalization when rapid heat up and cool down cycles occur.
• Anodized Polyester Powder Coat
• Weatherproof Deutsch® DT2 Connector.
• Includes adjustable side brackets
• Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles.
• Protected against reverse polarity
• Shockproof, IP68 waterproof, UV Shielded
• Protected against RFI / EMC Interference
• Voltage & current surge protection
• Pulse Width Modulation Thermal Management

TECH SPECS

• MAIN BEAM LED COUNT: 16 x 15W
• VOLTAGE: 12V & 24V
• LENS MATERIAL: OPTICAL GRADE, HARD COATED LEXAN
• LUMENS: 16,000
• HOUSING MATERIAL: 6063 EXTRUSION
• AMPERES: 16.1A @ 13.2v
• LIFESPAN: 50,000
• SPOT BEAM: DRIVING BEAM
• INGRESS PROTECTION: IP68
• OPERATING TEMP: -40˚C ~ +150˚C
• WEIGHT: 4.795kg
• CERTIFICATES: E-Mark R10 | CE √

WHAT’S INCLUDED

• 1 x 40.5″ ST2K-16L LED Light Bar
• 2 x Steel Side Brackets
• Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
• Wiring Instructions
• Comprehensive 304 Stainless Steel fasteners
