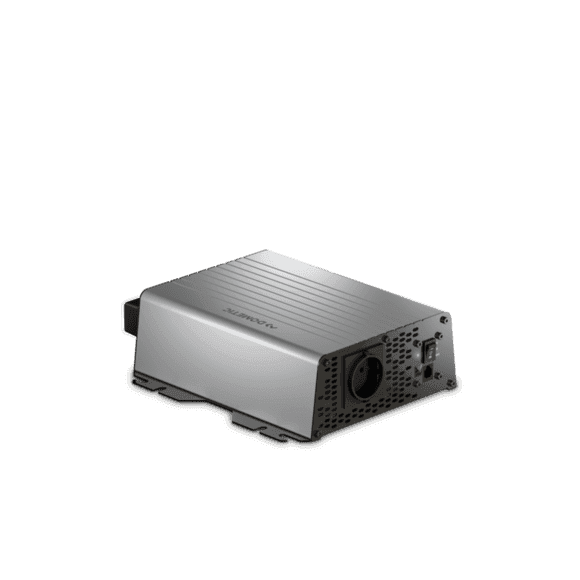

1000W Dometic Sine Wave Inverter

YOUR MOBILE POWER SOCKET
The Dometic SinePower DSP 1012 sine wave inverter turns 12 V DC battery power into pure 230 V AC – suitable for all kinds of devices, even for sensitive ones. Thanks to its large input voltage range, it also works fine in modern vehicles with smart alternators. Integrated protection circuits prevent damage by overload, overheat, over- and under-voltage. If no load is applied, the inverter switches to the energy-saving standby mode. It wakes up automatically as soon as it is required again. More benefits: low-noise fan, easy installation, remote control panel included as standard.

…AND MORE
Pure sine wave 230 V AC output voltage is suitable for sensitive electronic devices
Wide DC input voltage range – ideal for vehicles with EURO 6 emission standard
Energy-saving standby mode with automatic wake-up function
Easy installation in horizontal or vertical position
Automatic restart after overload, over- or under-voltage
Quiet fan is load- and temperature-controlled
Remote control panel included as standard

GENERAL
SKU number 9600002545
Model DSP1012
Model on label SinePower DSP1012
Product Description Sine wave inverter, 1000W, 12 V

DIMENSIONS
Dimensions product depth 240 mm
Dimensions product height 80 mm
Dimensions product width 230 mm
Net weight 3.10 kg

ELECTRICAL
Input voltage (DC) 12 V
Output voltage 230 V
Current consumption – Zero load 1 A
Current consumption – Standby mode 350 mA

PERFORMANCE
Energy efficiency >90% %
Continuous power 25°C 1000.00 W
Operating temperature min 0.00 °C
Operating temperature max 50.00 °C
