Grenadier LED Micro Touch Dual Colour with Bracket

MICRO FORM, HYPER FLOOD.

We’ve taken our popular Micro LED Lights to the next level. 2700K colour temp offers warmth and visual acuity, while the newly designed hyper flood optics offer a full beam width of 45m.

JUST ADD LIGHTNESS

The power and brilliance of the Micro V2 12 LED is packed into a convenient size of 197.8mm (width) x 25.9mm (height) x 40.6mm (depth). Did we mention that it weighs just under 0.3kg?

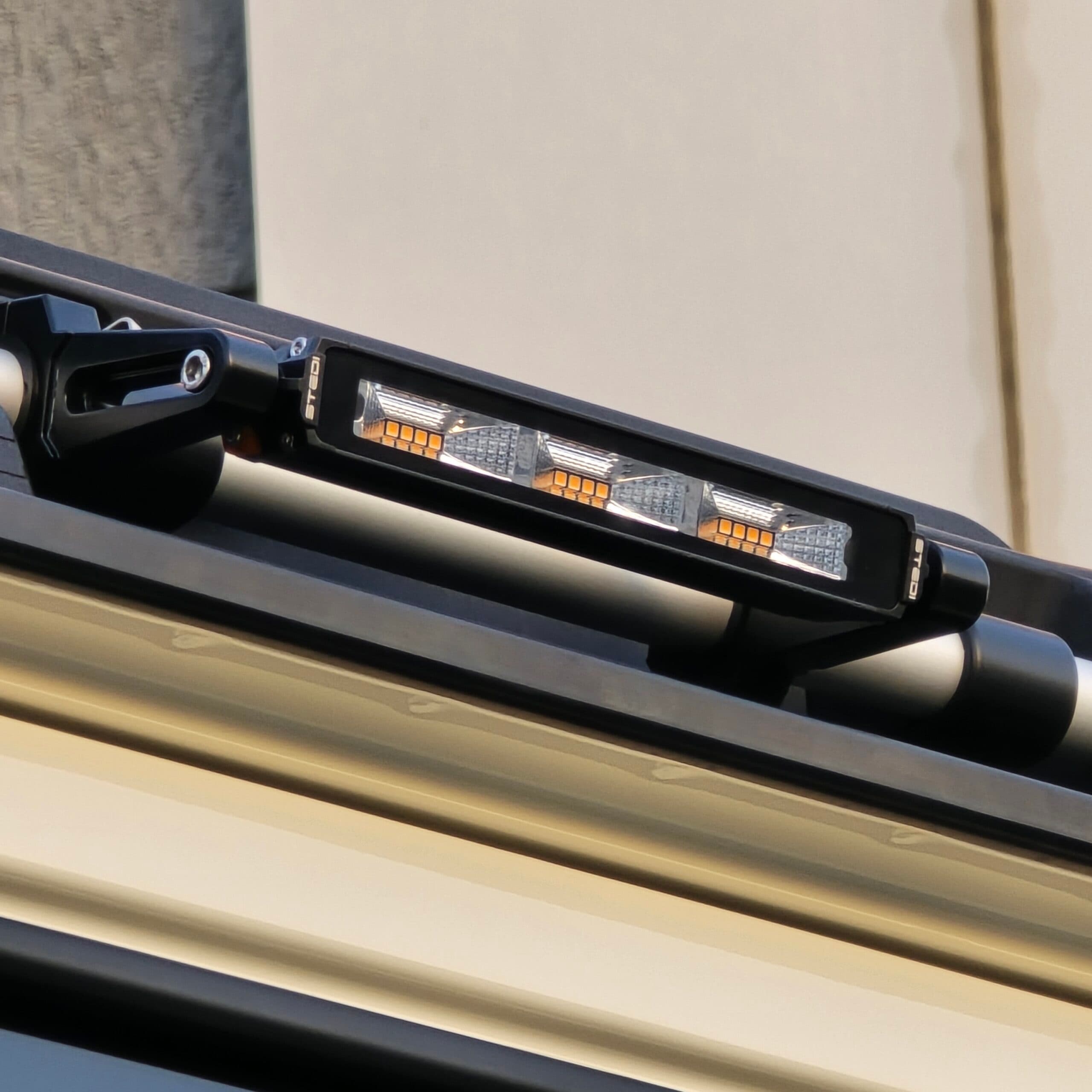

ROOF RACK COMPANION

The Micro V2 12 LED provides an endless amount of application possibilities. We love ours fitted to the underside of our roof rack platform. Rhino-Rack, Rola, ARB Base or Frontrunner – checkout our optional mounting brackets in the suggested items below.

LUX CHART:

Dimentions:

KEY FEATURES

• 2700K Coordinated colour temperature
• IP68 – Resistant to a maximum submersion depth of 1.5m for up to 30 minutes.
• Environmentally sealed Deutsch DT02 connectors connector included with male and female included.

TECH SPECS

• OPERATING VOLTAGE: DC 10-28V
• POWER CONSUMPTION: 12W
• AMP DRAW: 1.3A@12V/0.65A@24V
• COLOUR TEMPERATURE: 2700K
• LED: 12 x OSRAM GW PSLR 32. PM DRUISS
• EFFECTIVE LUMEN: 1400lm
• BEAM ANGLE: Height: 30° Width: 120°
• ENVIRONMENT TEMP: -40°C to 60°C
• IP RATING: IP68
• LENS: Polycarbonate with Surface Hardening
• FRAME/HOUSING: Extruded Aluminium
• DT CONNECTOR: Included
• MOUNTING BRACKET: 304# Stainless Steel
• LIFETIME: 30, 000hrs
• SIZE (mm): 197.8 x 25.9 x 40.6
• WEIGHT: 0.3kg
• CABLE LEGTH: 400mm
• CERTIFICATION: CISPR25

What’s Included

• 1 x 7.8 Inch Micro V2 LED Work Light (Amber)
• 2 x 46mm Side Brackets
• 2 x M8 Bolts
• 2 x M6 Bolts
• 2 x Nuts
• 4 x Flat Washer
• 4 x Spring Washer
• Male & Female Deutsch Connectors
