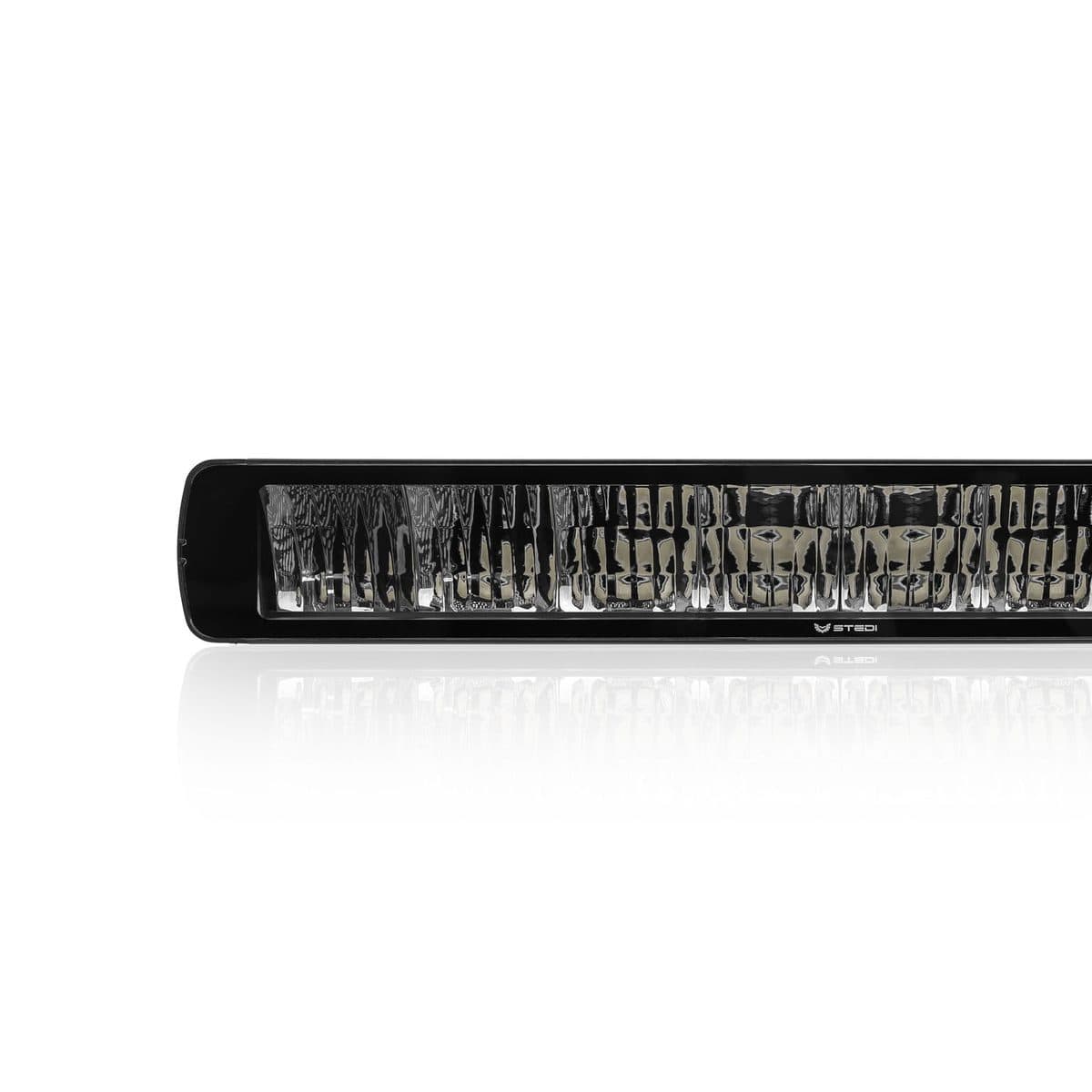

ST-X 21.5 Inch LED Light Bar

THE BEAM PATTERN

If you’re looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.

• Significantly minimises adverse reflection from road signs
• Controlled vertical spread minimises reflections off of high-mounted road signs.

KEY FEATURES

• 8x 15W LEDs
• LED Parking / Position Light Function (Amber or White built-in)
• Breather allows pressure equalisation when rapid heat up and cool down cycles occur
• Anodized Polyester Powder Coat
• Weatherproof Deutsch® DTP Connector
• Includes adjustable Side brackets & Sliding bottom brackets
• Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)
• Protected against reverse polarity
• Shockproof, IP68 waterproof, UV Shielded
• Protected Against RFI / EMC Interference
• Voltage & current surge protection
• Pulse Width Modulation Thermal Management

TECH SPECS

• VOLTAGE: 9-36V
• AMPERES: 8.5A @ 12V (full power), 3.46A @ 12V (limit power).
• POWER: 102W (full power). 41.52W (limit power)
• LUMENS: 4010LM (full power). 2310LM (limit power)
• COLOUR TEMPERATURE: 5000K
• AMP RATING: 0.3a
• PHOTOMETRIC DATA: 1 lux @ 586m (full power), 1 lux @ 445m (limit power)
• LENS MATERIAL: Optical grade, Hard-Coated LEXAN
• HOUSING MATERIAL: 6063 EXTRUSION
• INGRESS PROTECTION: IP68
• CANDELAS: 344017 (full power), 189429 (limit power)
• CONNECTOR: 60cm Cable with DTP 4in
• OPERATING TEMP: -40°C ~ +60°C
• CERTIFICATES: R112, ref. 50 and R10
• LIFESPAN: 50, 000hrs (LM80)
• PRODUCT WEIGHT: 2.6kg
• SHIPPING WEIGHT: 3.1kg

WHAT’S INCLUDED

• 1 x 21.5 Inch ST-X-20L LED Light Bar
• 2 x Steel Side Brackets
• 2 x Steel Sliding Brackets
• 2 x Brace Support Brackets
• Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
• Comprehensive 304 Stainless Steel fasteners
• Wiring Instructions
