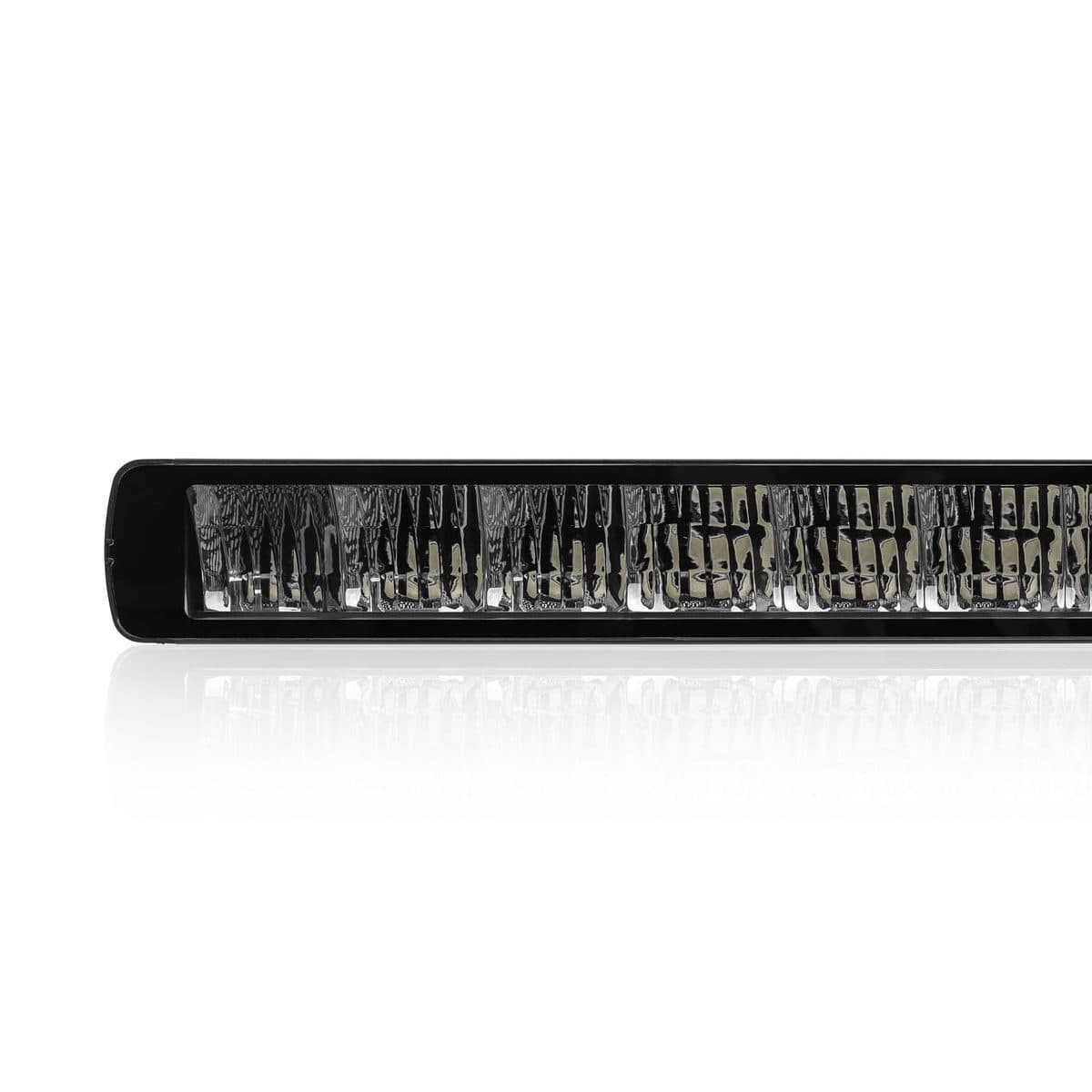

ST-X 40.5 Inch LED Light Bar

THE BEAM PATTERN

If you’re looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.

• Significantly minimises adverse reflection from road signs
• Controlled vertical spread minimises reflections off of high-mounted road signs.

KEY FEATURES

• 16x 15W LEDs
• LED Parking / Position Light Function (Amber or White built-in)
• Breather allows pressure equalisation when rapid heat up and cool down cycles occur
• Anodized Polyester Powder Coat
• Weatherproof Deutsch® DTP Connector
• Includes adjustable Side brackets & Sliding bottom brackets
• Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)
• Protected against reverse polarity
• Shockproof, IP68 waterproof, UV Shielded
• Protected Against RFI / EMC Interference
• Voltage & current surge protection
• Pulse Width Modulation Thermal Management

LUX GRAPH

DIMENSIONS

TECH SPECS

• VOLTAGE: 9-36V
• AMPERES: 17.2A @ 12V (full power), 3.28A @ 12V (limit power)
• POWER: 206.4W (full power), 39.36 (limit power)
• LUMENS: 8400LM (full power), 2327LM (limit power)
• COLOUR TEMPERATURE: 5000k
• AMP RATING: 0.5a
• PHOTOMETRIC DATA: 1 lux @ 859m (full power), 1 lux @ 450m (limit power)
• LENS MATERIAL: OPTICAL GRADE, HARD-COATED LEXAN
• HOUSING MATERIAL: 6063 EXTRUSION
• INGRESS PROTECTION: IP68
• CANDELAS: 739582 @ full power, 203337 @ limit power
• CONNECTOR: 60cm cable with DTP 4in
• OPERATING TEMP: -40°C ~ +60°C
• CERTIFICATES: R112, ref. 50 and R10
• LIFESPAN: 50, 000hrs (LM80)
• PRODUCT WEIGHT: 3.7kg
• SHIPPING WEIGHT: 4.2kg

WHAT’S INCLUDED

• 1 x 40.5 Inch ST-X-20L LED Light Bar
• 2 x Steel Side Brackets
• 2 x Steel Sliding Brackets
• 2 x Brace Support Brackets
• Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
• Comprehensive 304 Stainless Steel fasteners
• Wiring Instructions
