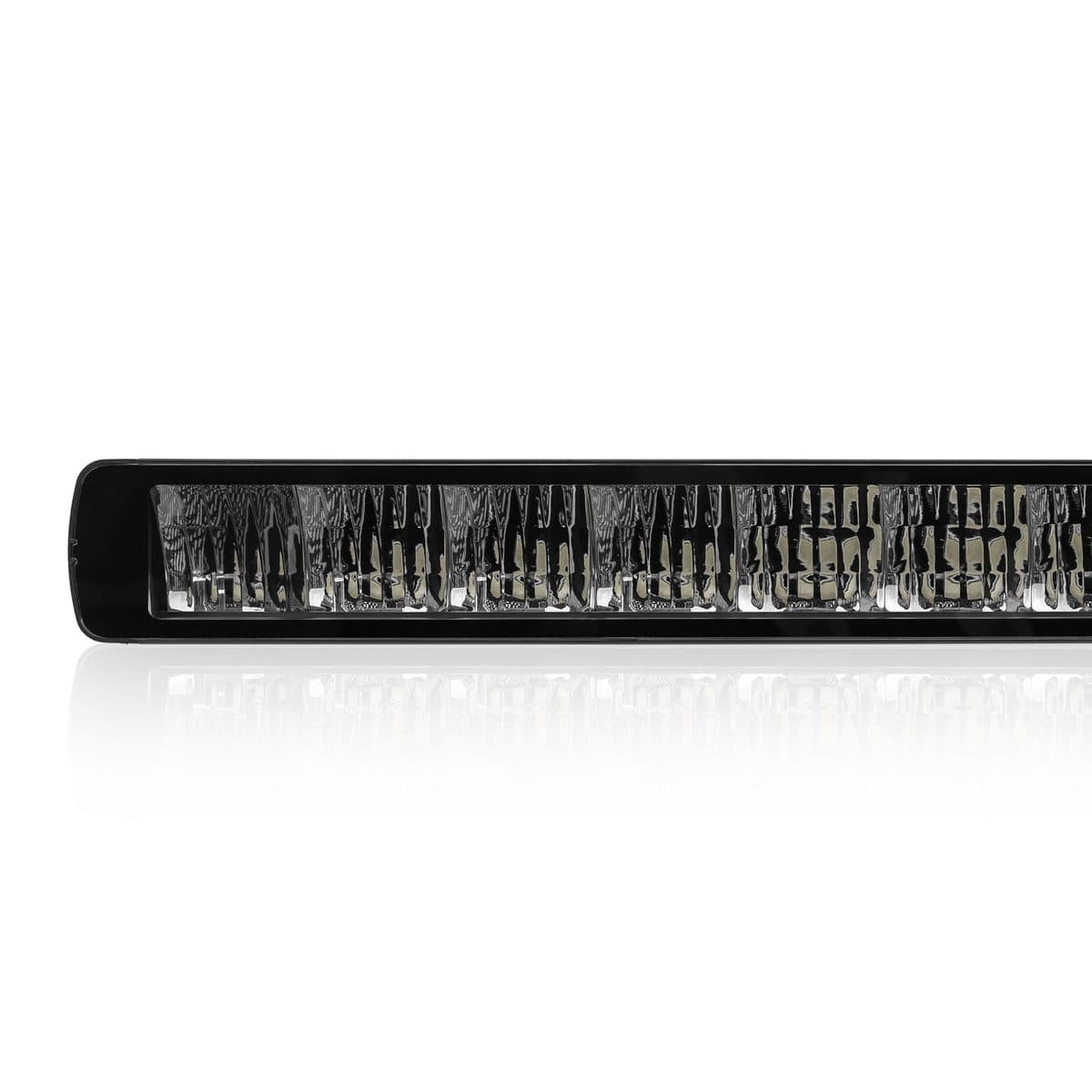

ST-X 50 Inch LED Light Bar

THE BEAM PATTERN

If you’re looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.

• Significantly minimizes adverse reflection from road signs
• Controlled vertical spread minimizes reflections off of high-mounted road signs.

KEY FEATURES

• • 20x 15W LEDs
  • LED Parking / Position Light Function (Amber or White built-in)
  • Breather allows pressure equalisation when rapid heat up and cool down cycles occur
  • Anodized Polyester Powder Coat

• Weatherproof Deutsch® DTP Connector
• Includes adjustable Side brackets & Sliding bottom brackets
• Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)
• Protected against reverse polarity
• Shockproof, IP68 waterproof, UV Shielded
• Protected Against RFI / EMC Interference
• Voltage & current surge protection
• Pulse Width Modulation Thermal Management

LUX GRAPH

DIMENSIONS

KEY TECHNICAL BREAKDOWN

• Registered Design: 201915829.
• CREE® XLamp XP-L HI undomed LEDs using CREE’s breakthrough SC5 Technology™
• RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
• IP68 – Submersible to 3m
• Deutsch DT 15A connector
• 32mm diameter parabolic reflectors
• Spread and Spot beam pattern
• 4mm thick 304 stainless steel side brackets included.
• Cast Alloy adjustable sliding bracket included.
• Nitto Denko™ Breather with PTFE microporous membrane
• Very heavy-duty Smart Plug & Play ADR compliant Wiring Harness. (Switch, Dual Fuse, Dual Relay and HB3 and H4 Piggyback Adaptors) include

TECH SPECS

• VOLTAGE: 9-36V
• AMPERES: 22.64A @ 12V (full power), 2.75A @ 12V (limit power)
• POWER: 271.68W (full power), 33W (limit power)
• LUMENS: 10000LM (full power), 2168LM (limit power)
• COLOUR TEMPERATURE: 5000K
• AMP RATING: 0.7a
• PHOTOMETRIC DATA: 1 lux @ 941m (full power). 1 lux @ 433m (limit power)
• LENS MATERIAL: Optical grade, Hard-coated LEXAN
• HOUSING MATERIAL: 6063 Extrusion
• INGRESS PROTECTION: IP68
• CANDELAS: 886807 @ full power, 187814 @ limit power
• CONNECTOR: 60cm Cable with DTP 4in
• OPERATING TEMP: -40°C ~ +150°C
• CERTIFICATES: R112, ref. 50 and R10
• LIFESPAN: 50, 000hrs (LM80)
• PRODUCT WEIGHT: 4.2kg
• SHIPPING WEIGHT: 5.7kg

WHAT’S INCLUDED

• 1 x 50 Inch ST-X-20L LED Light Bar
• 2 x Steel Side Brackets
• 2 x Steel Sliding Brackets
• 2 x Brace Support Brackets
• Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
• Comprehensive 304 Stainless Steel fasteners
• Wiring Instructions
