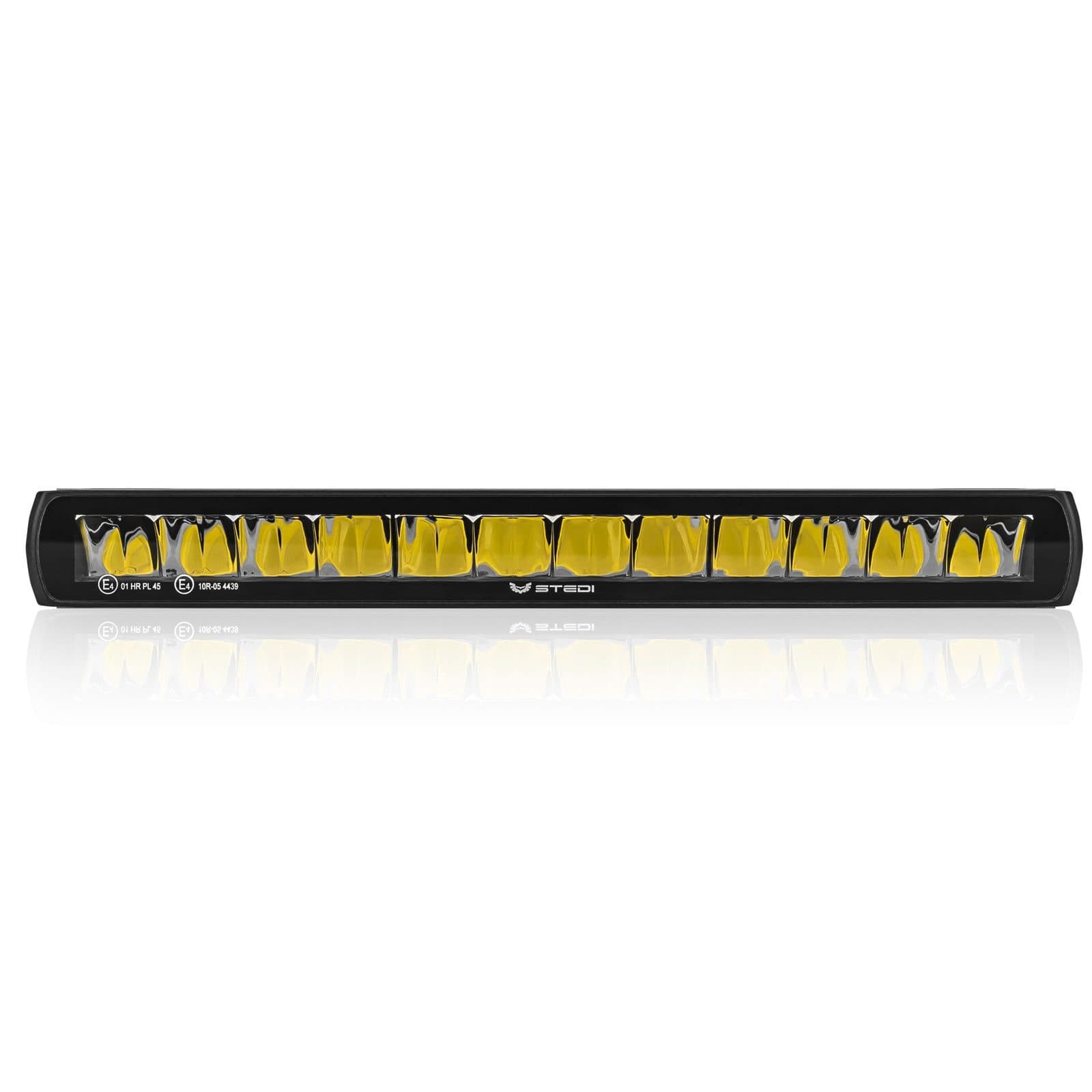

ST1K 13.5 Inch E-Mark LED Light Bar

LUX GRAPH

DIMENSIONS

THE NERDY STUFF

• 20 x 5W OSRAM LEDs
• RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
• IP68 – Submersible to 3m
• Environmentally sealed Deutsch DT-2 connectors
• Innovative hooded optics
• Driving Beam E mark compliant beam.
• Heavy Duty Adjustable Bottom Mounts & Side bracket included.
• Reverse Polarity Protected Circuit (RPPC)
• Electronic Thermal Management
• Built-in Voltage Surge Protection

TECH SPECS

• LED Manufacturer: OSRAM
• LED COUNT: 12
• VOLTAGE: 9V – 32V
• CURRENT DRAW (AMPERES): 4.0a @13.6v
• LENS MATERIAL: OPTICAL GRADE, HARD COATED LEXAN
• RAW LUMENS: 3,552Lm
• PEAK INTENSITY (CANDELA): 134,435cd
• HOUSING MATERIAL: A360.0 Cast face plate, extruded Aluminum heat sink
• LIFESPAN: 50,000
• FLOOD BEAM: 50°
• SPOT BEAM: 9°
• INGRESS PROTECTION: IP68
• OPERATING TEMP: -40˚C ~ +150˚C
• WEIGHT: 0.845kg

WHAT’S INCLUDED

• ST1K 13.5 Inch LED Light Bar
• Installation Manual
